Line adapters

983 EtherLite

Ethernet-RS485/RS232 * Communications Interface


Manage a NET92 or any RS232 device from the host computer via a LAN, WAN or the Internet, as if it were connected locally.


983 Ether LiteEtherLite is a communication interface which connects RS485/232 equipment to Ethernet -TCP/
IP systems. Any serial equipment with any asynchronous protocol can use Etherlite to send and receive data on local or geographical networks based on IP protocols.
Moreover, EtherLite implements and manages directly the TMC-NET92 protocol for TMC terminals.
The communication is extremely efficient: the polling of all TMC terminals connected in RS485 is carried out locally. DLL libraries and an OCX module are available to support the communications with a PC. For this purpose, the standard API (socket or Winsock) can also be used.

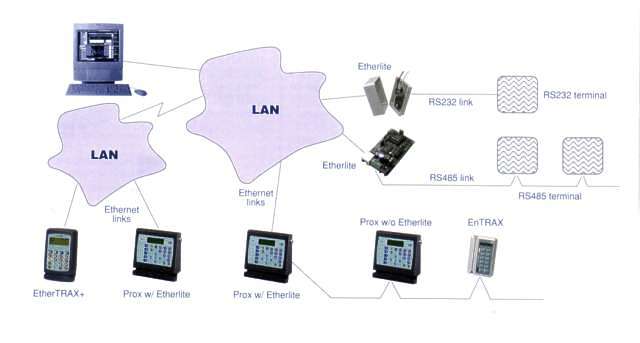

The possible system configurations are shown in the illustration.
In the picture you can see the connections of TMC terminals or, in general, RS232 and 485 devices from other vendors to a remote PC equipped with an Ethernet interface. In this case, it is possible to carry out an on-line system by using an OCX control (available on the TMC website free of charge) for the software development.

Up



Main technical features Ethernet/IP port:

  • Communication speed: 10 Mbit/s
  • Buffer for messages to TTY ports: unlimited
  • Connectors: RJ45 for 10Base-T
  • Managed protocols : ARP - ICMP (only PING) - UDP/IP (TCP/IP compatible) UDP port: configurable
  • Packets format: UDP without header (UDP transparent) or with packets type and numbering (TMC mode)



Asynchronous serial port (TTY):

  • Electrical Interfaces: two separate outlets (in parallel) in the RS232 and RS485 tandards.
  • Connectors: screw connectors for RS485 - RJ11 for RS232
  • Communication speed: 300, 1200, 2400, 4800, 9600, 19200,57600 baud
  • NET92 Protocol: (9600, 19200, 57600 baud), can be disabled.
  • Handshake RS232: hardware (CTS, RTS)and/or software (XON-XOFF and/or ACK-NAK).
  • Possibility to transfer binary files.
  • Messages terminator: buffer length, timeout or character both definable.
  • Buffer length for messages to Ethernet: >1150B in UDP mode - transparent.



Development Support

All modern desktop operating systems offer built-in TCP/IP protocols and can therefore communicate with EtherLite.

Along with EtherLite, TMC supplies:

  • EtherTest, a program for immediate remote configuration of all EtherLite parameters and for testing terminals. It is provided along with the source code which shows the format of the UDP packets and of the communication with EtherLite using the WinSocket API.
  • EtherCtrl.OCX for developing your online/offline applications. A demo program for evaluation and testing is provided in VB6 source code.

Up



983.010.20 EtherLite Ethernet RS485/RS232 Interface
Accessories: 510.002.00 BOX2 IP56 plastic box (mm150x110x70) (GE 44 206)


  • Signal/LED: 3 leds - Yellow: network activity - Green and Red: interface status
  • Settings retention: permanent in EEPROM. Reset when restarted
  • Reset key: two modes (simple reset and default configuration resetting)
  • Power supply: 9 to14 Vdc, 80mA max.
  • Working temperature: 0C to 50 °C
  • Storage temperature: -20 °C to +70 °C
  • Humidity: 0 to 95 % non condensing
  • Dimensions (without cables): 55 x 98 x 18 mm (W x H x D)
  • Weight: 39 g

Up
